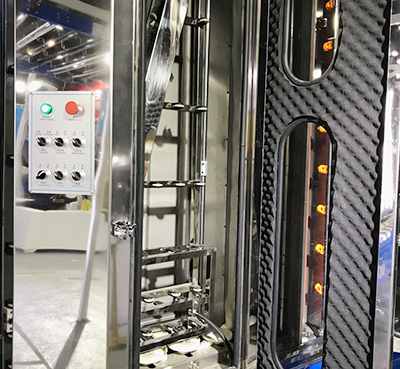

This production line belongs to our company's high-performance stainless steel washing machine, which consists of three parts: input section,washing and drying section,and the output section.
Model: LQ2000/LQ2500/LQ3300
Production ：30-40 days
Performance characteristics:
1. All washing parts are stainless steel,oil free lubrication bearing.
2. The air knife can be auto-adjusted according to glass thickness.
3. Auto-detection the film of coating glass and Low-e glass.
4. Can wash on/off coating glass.
5. Adopts discontinuity working day.
6. The brush can be auto-adjusted according to glass thickness.
The main technical parameters
Input voltage (Power supply): 3P.380v 50HZ
Total power: 19.6Kw
Cleanout speed: 2～8m/min
Min glass size:300*450mm
Max.glass size: 2000×3000mm/2500×3000mm/3300x6000mm
Washing glass thickness:3-15mm
Dimensions: 9200×2800×2950 mm
Total weight: 3600kg
Main components:
|
Number |
Product name |
Brand name |
Brand location |
|
1 |
Photoelectric switch |
Autonics |
Korea |
|
2 |
Low-voltage electrical appliances |
Schneider |
France |
|
3 |
Drive roller |
Polyurethane (joint venture) |
Suzhou |
|
4 |
Three pairs of brushes |
Nylon wire (￠180) |
Hebei |
|
5 |
Cleaning part |
All brushed stainless steel plates |
Guangzhou |
|
6 |
Transmission reducer |
Shengbang |
Taiwan |
|
7 |
Brush reducer |
Shengbang |
Taiwan |
