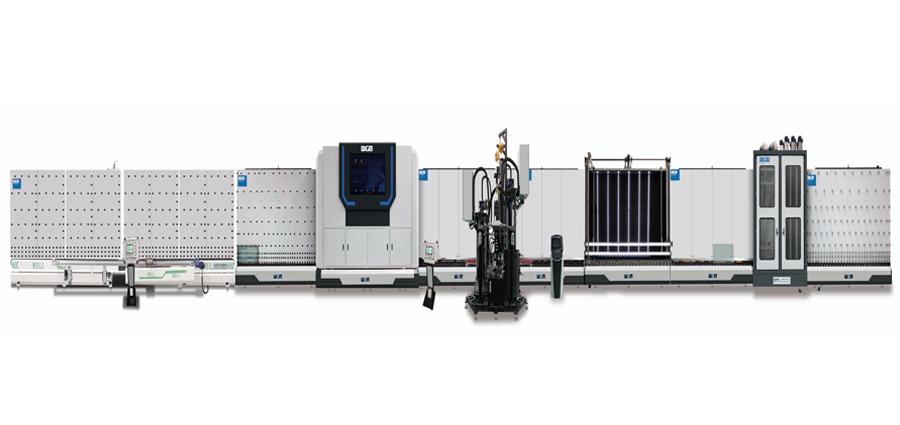

TPSS Insulating Glass Automatic Sealing Line

Product Description Selection Parameters Detail Image Flow Chart
—— Product Description ——
Main Feature
■ No need for pre-process, such as bending spacers, applying butyl glue on spacer, and assembling
aluminum spacer frame.
■ The dual drum pump feeding system can continuously supply and discharge TPSS liquid.
■ Can simultaneously process metal (aluminum) spacer bars and TPSS spacer bars.

Main Technique Parameter
1. Glass thickness：3~12mm
2.  Insulating glass thickness：15~60mm
3.  Sealing speed：5~30m/min
4. Sealing width：6~24mm
5.  Sealing depth：2~15mm
6.  Air supply：0.5~0.8MPa
7. Working height：520~580mm
8.  Min.Glass Size：300×400

—— Selection Parameters ——
  • Model一：

    Product model：WLTPSS2540

    Main Technique Parameter：
    Max.glass size：2500×4000
    Dimension：42600×3500×3450
    Power supply：45kW
    Feeding nozzle：6.8/5.8
    T speed：40m/min
    Supply system：Dual pump
    Feeding system：heating hose
    Feeding speed：20m/min
    Suction type：Belt/pad
    Order This Model
  • Model二：

    Product model：WLTPSS2745

    Main Technique Parameter：
    Max.glass size：2700×4500
    Dimension：48500×3500×3650
    Power supply：145kW
    Feeding nozzle：6.8/5.8
    T speed：40m/min
    Supply system：Dual pump
    Feeding system：heating hose
    Feeding speed：20m/min
    Suction type：Belt/pad
    Order This Model
  • Model三：

    Product model：WLTPSS3060

    Main Technique Parameter：
    Max.glass size：3000×6000
    Dimension：65000×3800×3950
    Power supply：185kW
    Feeding nozzle：6.8/5.8
    T speed：40m/min
    Supply system：Dual pump
    Feeding system：heating hose
    Feeding speed：20m/min
    Suction type：Belt/pad
    Order This Model
—— Detail Image ——
—— Flow Chart ——
