This machine is a fully automatic film removing machine, used for removing the film layer of insulating coated glass.
Specification model; WLCM2000/WLCM2500
Production ：30-40 days
Main performance characteristics

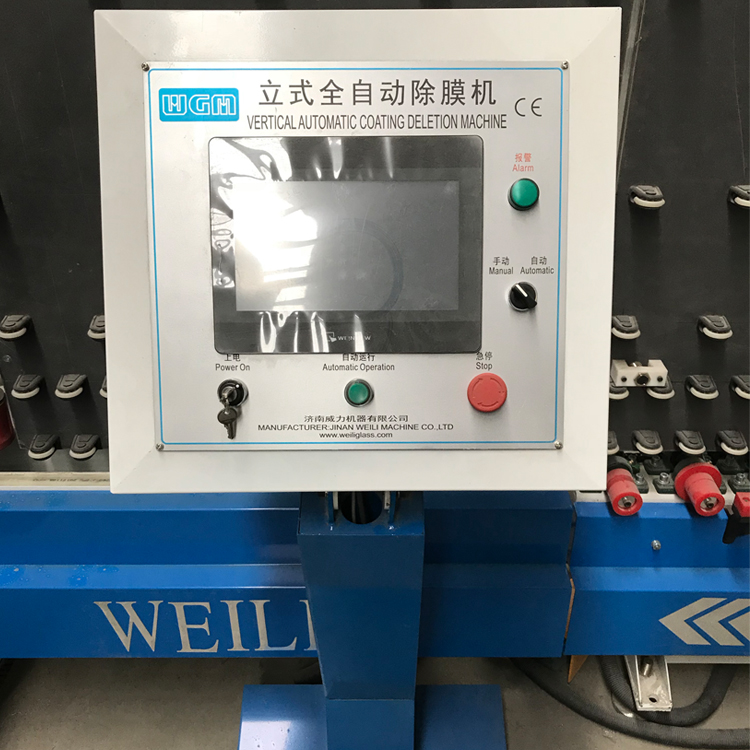

The man-machine interface touch screen, Japan Panasonic motion controller controls the running action.
Automatic recognition of LOW-E glass coating layer
5-axis servo control system
Able to remove square and special-shaped glass
Automatically detect glass size
Automatic pressure regulating system for grinding wheel contacting membrane surface
Automatic dust removal function
Automatic grinding wheel dressing function
Control system intelligent batch processing memory function
Linear guide rail positioning mechanism
The main technical parameters
Maximum size of processed glass: 2000*3000mm/2500*3500mm
Minimum size of processed glass: 350*550mm
Thickness of film-removing glass: 3-19mm
Glass removal width: 5-50mm
Glass conveying speed: 45m/min
Glass removal speed: 0-30m/min
Grinding wheel width: 10/12/15mm
Air source: flow rate 0.2m³/min, air pressure ≥0.8Mpa
Electric power: 3P 380V 50HZ 3.35 KW
Dimensions: 8750*2500*2900mm (length*width*height)
Main components
NO.
NAME
BRAND NAME
LOCATION
1
PLC
HUICHUAN
CHINA
2
Servo Motor
HUICHUAN
CHINA
3
Photoelectric switch
Autonics
Korea
4
Fiber-optic switch
SUNX
Japan
5
Servo Drive
HUICHUAN
CHINA
6
Low-e voltage component
SCHNEIDER
France
